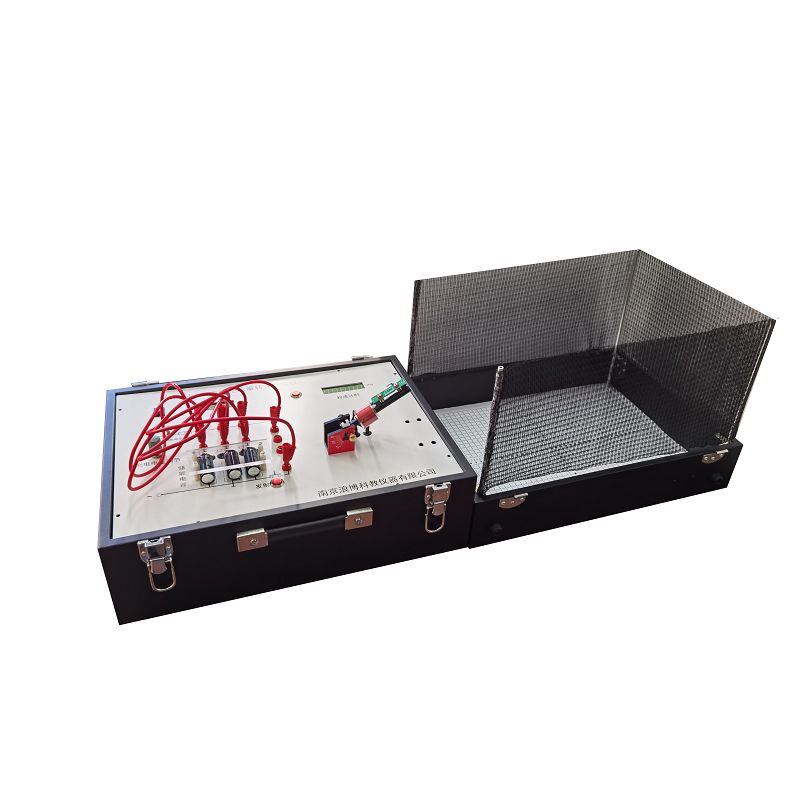

Capacitor Energy Storage Electromagnetic Launch Experiment Kit



Hands-On Learning of Energy Conversion

The LB-EMA Capacitor Energy Storage Electromagnetic Launch Experiment Kit shows students how electrical energy turns into mechanical energy. The charging voltage is adjustable from 0 to 150V continuously. A voltmeter shows the voltage with an accuracy of ±0.1V. The kit uses three storage capacitors of 330µF / 200V each. You can use one capacitor alone or connect several in parallel to change the total storage capacity. A solid-state switch with 12A / 220V rating handles the launch control. This solid-state design prevents contact burning that happens with mechanical switches. You can choose from 200 turns, 250 turns, or 300 turns. This allows students to study how coil turns affect launch performance.

The gun body has a pitch adjustment and locking mechanism. The adjustment range is 0 to 40 degrees. The barrel diameter is 10mm. A muzzle speed measurement device is installed at the gun mouth. The speed measurement range is 0 to 3m/s. Students can measure the projectile speed directly. The LB-EMA Capacitor Energy Storage Electromagnetic Launch Experiment Kit also includes a projectile recovery system and a safety protection system. This makes the experiment safe for classroom use. The kit allows students to change the charging voltage, the number of capacitors, and the coil turns. They can see how each change affects the launch speed and distance. This gives a clear understanding of energy storage and conversion in a capacitor-based electromagnetic launcher.

All components are well organized. The LB-EMA Capacitor Energy Storage Electromagnetic Launch Experiment Kit is suitable for university physics and engineering courses. It helps students learn about capacitor discharge, electromagnetic force, and energy conversion efficiency. The adjustable launch angle also allows experiments on projectile motion. The safety features, including projectile recovery, ensure that the kit can be used repeatedly without risk. This instrument is a practical and engaging way to teach electromagnetism and energy conversion principles.
