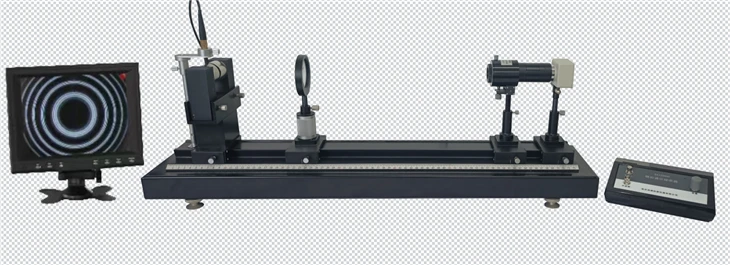

Zeeman Effect Experiment Apparatus
This Zeeman Effect Experiment Apparatus has a total length of only 0.8 m. It uses a compact, high-strength permanent magnet capable of producing a magnetic field from 0 to 1.2 T. The magnet dimensions are 110 × 100 × 35 mm, and it is lightweight. No power supply or cooling water is required.
Description
This Zeeman Effect Experiment Apparatus has a total length of only 0.8 m. It uses a compact, high-strength permanent magnet capable of producing a magnetic field from 0 to 1.2 T. The magnet dimensions are 110 × 100 × 35 mm, and it is lightweight. No power supply or cooling water is required.
The solid F–P etalon integrates three components: an etalon, a filter, and a polarizer. The etalon is made of quartz crystal, ensuring long-term dimensional stability. The clear aperture is 20 mm, with a surface flatness of λ/100 and parallelism of 0.02 arcseconds. This system is highly compact and suitable for modern teaching laboratories.
High-Precision Optical Components
This Zeeman Effect Experiment Apparatus features a finesse of ≥25 and a free spectral range of 78 GHz. The high-reflectivity coating operates in the 450–650 nm range. The equivalent air gap thickness is 2 mm, and the resolving power reaches λ/Δλ ≥ 2×10⁵.
The interference filter consists of 23 coating layers, with a center wavelength of 546.1 nm, a bandwidth below 5 nm, and transmittance above 70%. The polarizer dial has 1° divisions and can be detached for independent use. This system produces high-resolution spectral lines.
CCD and Software for Data Analysis
This Zeeman Effect Experiment Apparatus uses a linear CCD (ZM601D) combined with dedicated data analysis software. The CCD has 2,160 pixels with a resolution of 14 μm. Its spectral response range is 0.30–0.90 μm. The USB 2.0 interface uses 12-bit A/D conversion.
The software supports spectral data acquisition, storage, and report generation. It can also compare π and σ spectral components before and after Zeeman splitting. The experimental accuracy is ≤3%. Each unit is equipped with a QR code, allowing students and teachers to access manuals, operation videos, and warranty information. This system is easy to operate and highly accurate. Payment is accepted in USD or RMB, and a one-year warranty is included.
Key Parameters
|
Parameter |
Value |
|
Magnetic Field Range |
0–1.2 T |
|
F-P Etalon Finesse |
≥25 |
|
Filter Center Wavelength |
546.1 nm |
|
CCD Resolution |
14 μm |
|
Experimental Accuracy |
≤3% |
